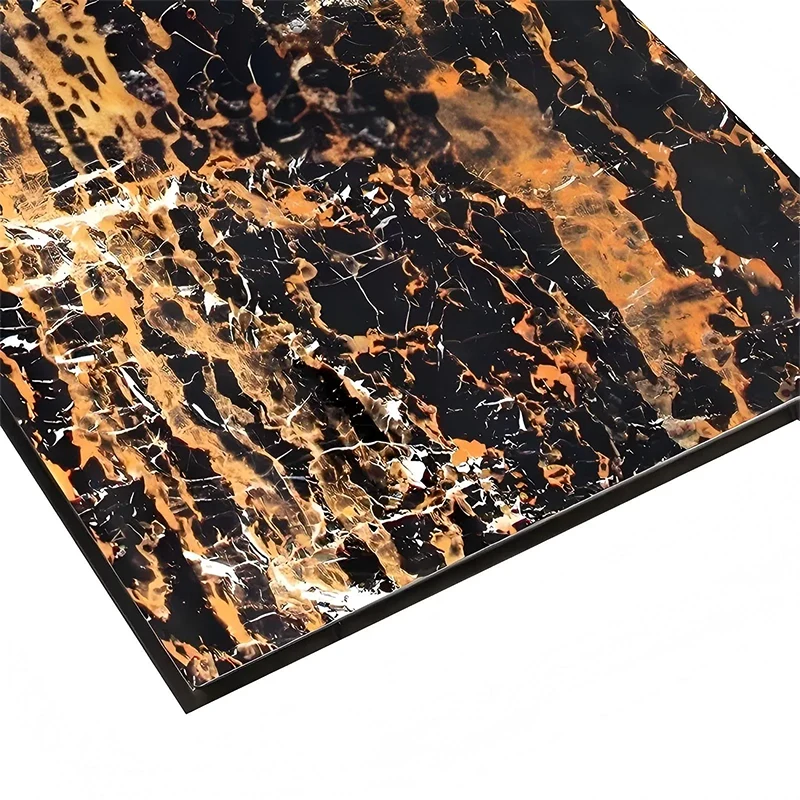

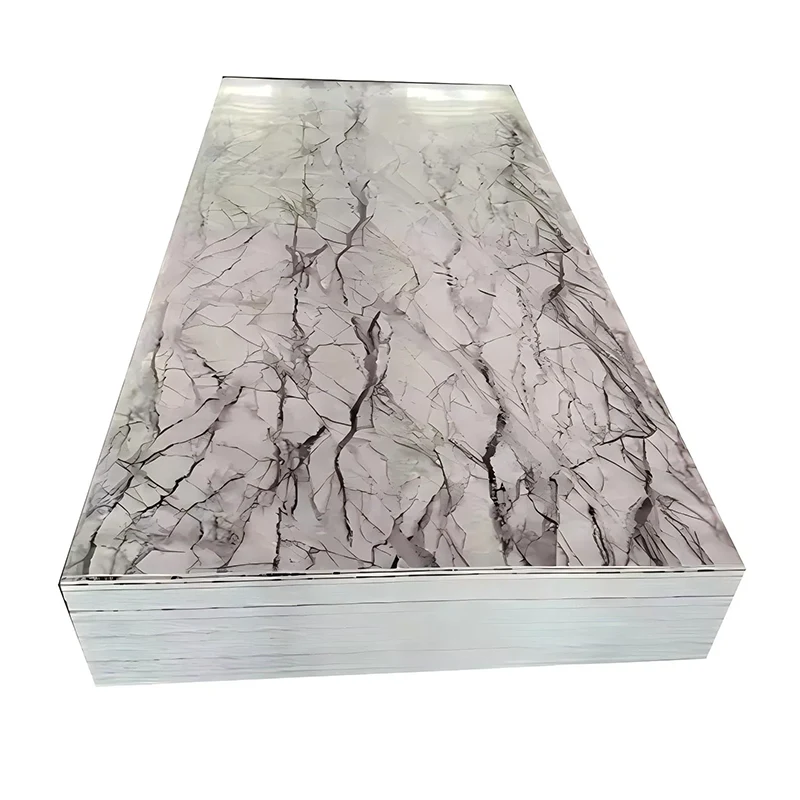

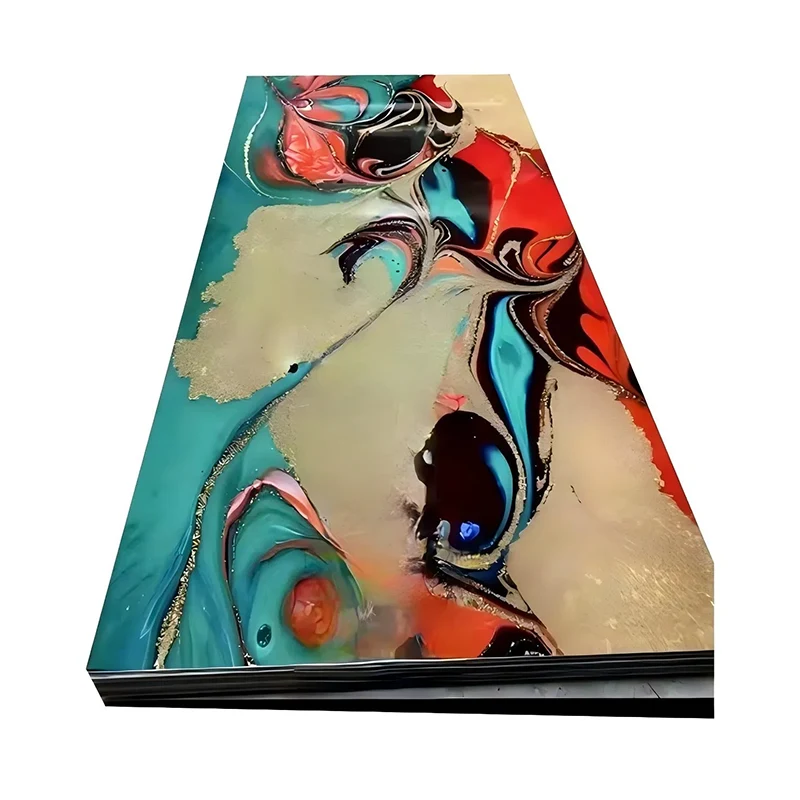

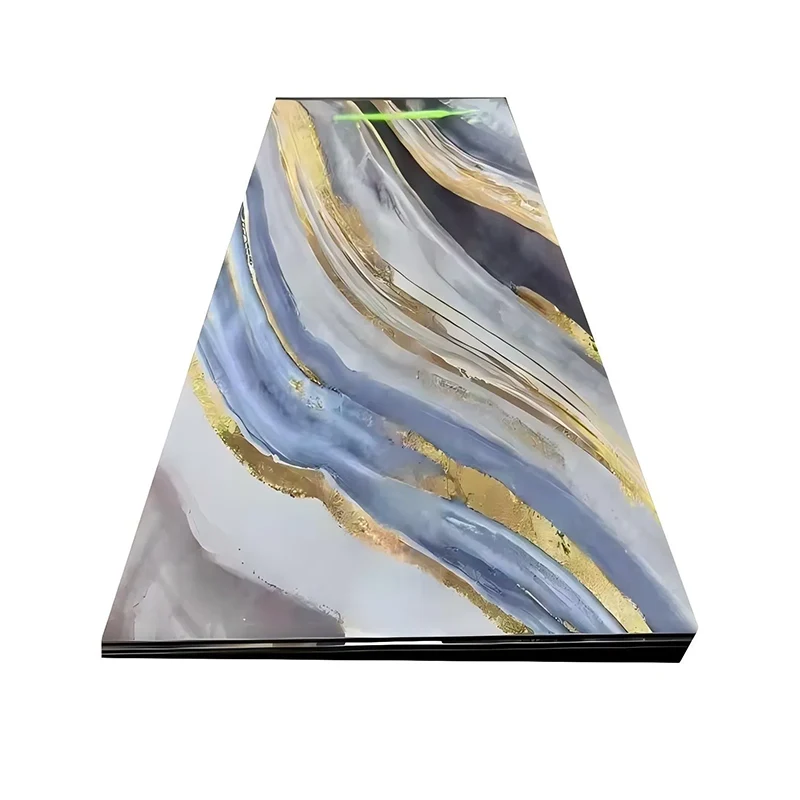

High Glossy UV Coating PVC Marble Wall Panels

Retent High Glossy UV Coating PVC Marble Wall Panels combine aesthetic elegance with industrial-grade performance. These panels are synthetic decorative boards featuring a UV-protected surface, offering a realistic stone-like appearance with high-gloss finish.

What is a UV Board?

The primary raw materials are calcium powder and PVC, with a higher proportion of calcium powder for added rigidity. The finished panel mimics natural marble on the surface but is a lightweight, engineered product. The UV treatment involves applying UV paint (ultraviolet curing paint, also known as light-initiated paint) onto the planed substrate, followed by curing through a UV drying machine. This process delivers vibrant colors, excellent abrasion resistance, strong chemical resistance, and an extended service life.

Eco-Friendly & High-Performance Coating The primer uses solvent-free 4E Green premium paint—non-volatile, non-toxic, and environmentally friendly. After curing, it achieves a brilliant high gloss and provides an ideal antibacterial surface, making it suitable for hygiene-sensitive environments.

SPC Substrate Advantage The SPC (Stone Plastic Composite) substrate, combined with UV paint and cured via UV light, produces a panel with bright surface treatment, strong visual impact, and outstanding durability. It resists fading, is easy to clean, and maintains its color over time. Note that this high-performance process requires advanced mechanical equipment and process technology, which contributes to a higher product cost but guarantees superior quality.

Key Features & Benefits

• Waterproof & Moisture-Proof – Ideal for humid areas like bathrooms and kitchens.

• Fire-Resistant – Enhances safety in residential and commercial spaces.

• Easy to Clean – Non-porous surface resists stains and dirt.

• Zero Formaldehyde – Green, pollution-free, and safe for indoor use.

• Abrasion & Chemical Resistant – Maintains new appearance even with heavy use.

• Fade-Resistant – UV coating prevents yellowing or color loss over time.

• Flexible Installation – Supports large-size installation and can be freely cut to size on-site.

• Low Maintenance – No need for repainting or special care.

PVC marble board is a kind of imitation marble decoration material, with many advantages,Waterproof and fireproof, and easy to clean Material made of polyvinyl chloride and stone powder, resistant to high temperature Heating extrusion production, so environmental protection, pollution-free PVC marble board Can be used in many places, bathroom, bedroom, kitchen, background wall and so on.

Product Parameter (Specification)

Features:

Competitive Advantage of WPC Solid Integrated Wallboard:

1.Waterproof/moisture-proof/ moth/ not easily deformed

2.Flame retardant/heat preservation

3.Quick install/easy to clean

4.Green environment protection/ zero formaldehyde

5.Abrasion resistant/ permanent new

6.Strong absorption/ harm free

7.The color is firm and durable and does not need to be repainted

8.Support large size installation, and can also freely cut the size according to installation requirements

Q&A

Q1.When can I get the price?

A1.We usually quote within 24 hours after we get your inquiry. If you need a quote urgently, please leave your WhatsApp for us to communicate promptly.

Q2.What about the production capacity per day?

A2.More than 30 extrusions lines, 10 containers per day.

Q3.How about your delivery time?

A3.Usually 15-20 days after receiving your advanced payment.

Q4.Do you provide samples? Is it free or extra?

A4.Yes, we provide free samples, but you need to pay the shipping fee.

Q5.How about the quality of your products?

A5.We have a strict quality controlling system to guarantee the best quality.

Production Details & Installation Guide for UV Marble Sheets

Step 1 – Prepare the Substrate Ensure the bottom layer is confirmed, clean, and completely dry. The surface must be level. Remove all dirt and debris. Use gypsum board or magnesium plate as the base layer – it should be smooth and waterproof.

Step 2 – Marking & Positioning Mark and position according to the decoration size and bottom line shape.

Step 3 – Apply Double-Sided Tape Adhere double-sided tape at fixed positions and press firmly. Usage: Approx. 3.3 m² per roll for walls, 4.3 m² per roll for ceilings.

Step 4 – Apply Adhesive Glue Cut the hose glue bottle nozzle to the size of a cigarette (approx. 7mm opening width). Squeeze glue alongside the tape positions in a wire-bound pattern. Usage: Approx. 0.5 units per m² for walls, 0.6 units per m² for ceilings.

Step 5 – Remove Tape Backing Strip away the separation paper from the double-sided tape.

Step 6 – Bond the Decorative Panel Within 10 minutes, bond the decorative panel to the fixed position. Press firmly by hand along the tape areas to ensure full adhesion. Do not move or re-bond once placed.

Step 7 – Maintenance Allow 1 day of curing time for the adhesive glue to fully set.
